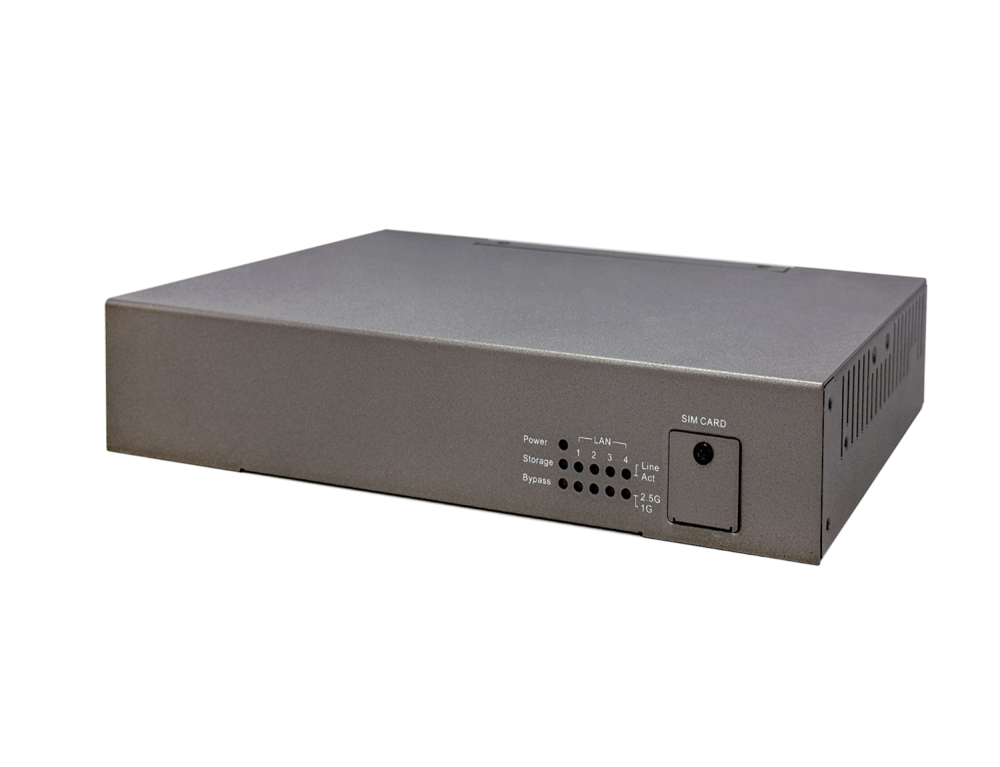

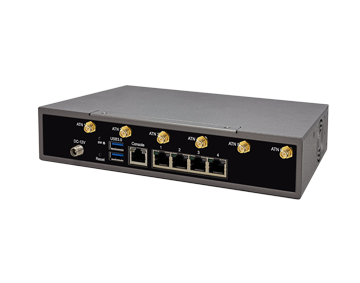

NSA-50A1
The NSA-50A1 Desktop Network Appliance is an entry-level CPE tailored for software companies, internet providers, and small businesses. Powered by the Intel Atom™ C3338R Processor, it integrates Intel QuickAssist Technology (QAT) for efficient encryption and compression, delivering reliable performance across LAN, firewall, and security gateway applications.
• Intel® Atom® Processor C3338R
• 1 x DDR4 SO-DIMM
• Optional DC-IN 12V single power / Dual power
• TPM 2.0
• Optional 4G LTE, 5G, WiFi
• 1 x Serial console
• Smart Fan design
• 1 x DDR4 SO-DIMM
• Optional DC-IN 12V single power / Dual power
• TPM 2.0
• Optional 4G LTE, 5G, WiFi
• 1 x Serial console
• Smart Fan design
-
CPU Intel® Atom® Processor C3338R Memory 1 x DDR4 ECC SODIMM Storage 1 x 2.5” Internal HDD Bay Real time clock Lithium Battery, 3V 220mAH (CR2032) Security TPM 2.0 Operating System Linux Kernel 5.15 LTS & above (64-bit) Support Protocol Support QAT&DPDK Power Requirement Input voltage: 12VDC Power Consumption 40 W (typical) Dimension 215mm(W) x 143mm(D) x 44mm(H) Weight 1.2 kg Operating Temperature 32 °F ~ 104 °F (0 °C ~ 40 °C) Storage Temperature -4 °F ~ 176 °F (-20 °C ~ 80 °C) Operating Humidity 0% ~ 95% relative humidity(RH),\ non-condensing Regulations CE, FCC,RoHs Ethernet 4 x 2.5 GbE RJ-45 USB 2 x USB 3.0 (Type A) Power Connector 1 or 2 x 5.5mm x 2.1mm DC input, connectors (optional) Expansion Slot 1 x M.2 B Key (3042/3052), USB3.0/2.0 (Shared with storage), 1 x M.2 E Key (2230), PCIe x1 + USB2.0 for Wi-Fi/BT Other Interface Reset button SW reset button
